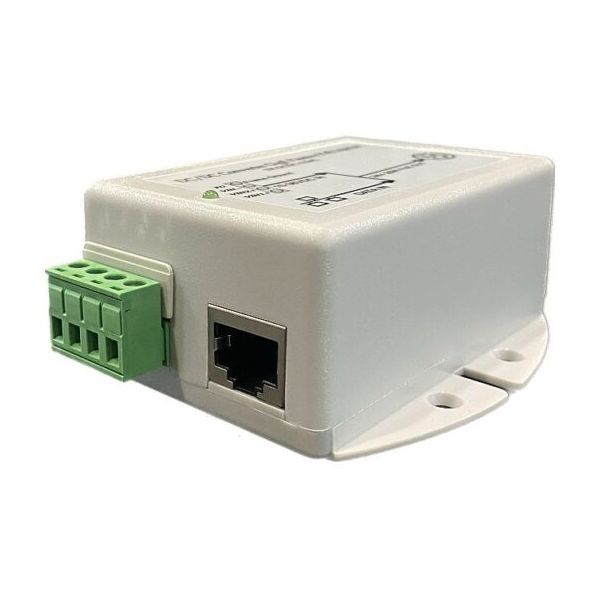

DC PoE Injector, 10-36VDC IN, 24V 20W GigE PoE OUT
$54.95
Customize
Store Qty
1970 Features
DC to DC Converter Input voltage 10–36VDC Output 24VDC (Passive) High power up to 24W Integrated Gigabit (10/100/1000MB) PoE inserter IEEE 802.3af compliant or Passive PoE output Dual inputs for connecting 2 power sources Low self consumption Short circuit, over current, and reverse/over voltage protection High temperature operation Compact size Applications
12V / 24V / 48V Battery Systems, Vehicle Applications Wireless Access Points and Client Devices IP Phone and Security Camera Systems PoE Lighting Applications Short Description
DC PoE Injector, 10-36VDC IN, 24V 20W GigE PoE OUT Long Description
The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power® are a low cost and high efficiency solution for those requiring IEEE802.3af or Passive Power over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 24W. Technical Links
Spec Sheet http://tyconsystems.zohoecommerce.com//specsheets/TP-DCDC_Gigabit_POE_Inserter-Converter_Spec_Sheet-1.pdf User Guide https://www.tyconsystems.com/usermanuals/POE_User-Guide.pdf KnowledgeBase
