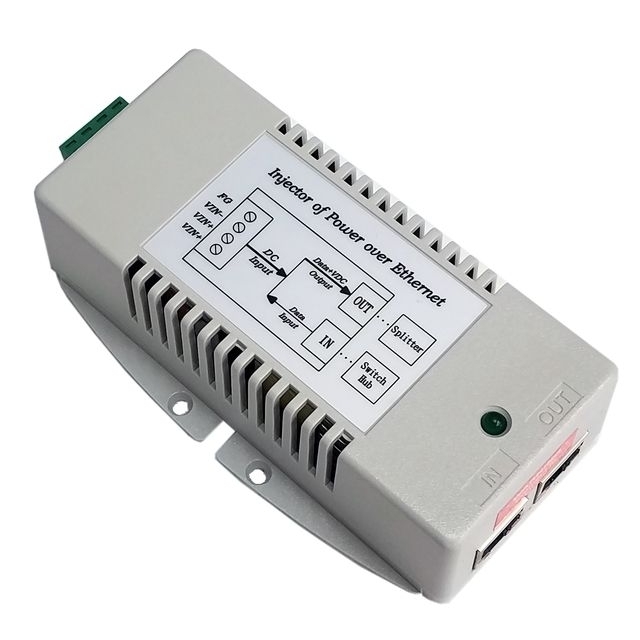

DC PoE Injector, 18-36VDC IN, 56V 35W GigE 802.3at PoE OUT
$90.95
Customize
Store Qty
164 Features
DC to DC Converter with Integrated 10/100/1000MB PoE Inserter Input Voltage 12VDC, 24VDC, or 48VDC Dual Inputs for Connecting 2 Power Sources IEEE 802.3af/at Compliant or Passive PoE Output High Power up to 50W Low Self Consumption Power Short Circuit, Over Current, and Reverse/Over Voltage Protection High Temperature Operation Compact Size Applications
12V / 24V Battery Systems Wireless Access Points and Client Devices IP Phone and Security Camera Systems PoE Lighting Applications Short Description
DC PoE Injector, 18-36VDC IN, 56V 35W GigE 802.3at PoE OUT Long Description
The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power® are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at or Passive Power over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated PoE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W. Technical Links
Spec Sheet http://tyconsystems.zohoecommerce.com//specsheets/TP-DCDC-HP_GigE_POE_Inserter-Converter_Spec_Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/POE_User-Guide.pdf KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/power-over-ethernet-poe 3d_images
TP-POE-HP - TP-DCDC-HP large housing 64mm.glb
