V3 - 48V 20A MPPT Solar Charger, SLA/Lit, 7 Port GigE 802.3at/24V Passive PoE Switch, Remote Mgmt
$599.95
Customize
Store Qty
885 Features
MPPT Solar Controller with 7 Port Gigabit PoE Switch TPDIN® MPPT 48V 20A Solar Controller Supports up to 1kW Solar Input Temperature Compensated Smart Battery Charging 48V or 24V User Selectable Output Voltage Total 200W Power Output 2.25A Auxiliary Wire Terminal Output Automatic Low Voltage Battery Disconnect 7 Port Gigabit PoE Switch Configurable 802.3at and 24/48V Passive PoE Ports Manageable Switch with Automated Alerts and Port Controls Remote Monitoring and Control DIN Rail or Screw Tab Mounting Applications
Remote Power Systems Solar Lighting Solar Power Applications Telecom Power Applications Short Description
V3 - 48V 20A MPPT Solar Charger, SLA/Lit, 7 Port GigE 802.3at/24V Passive PoE Switch, Remote Mgmt Long Description

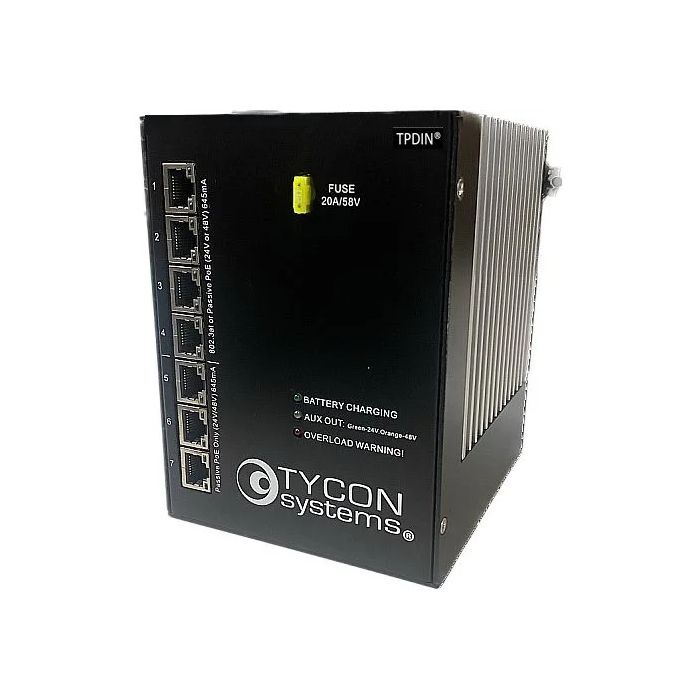

The newest in our TPDIN® series of products is the TPDIN-SC48-20. It is a web manageable MPPT Solar Controller with built-in 7 Port Gigabit Passive PoE switch. The controller uses temperature compensated smart battery charging to properly charge GEL, AGM, or Lithium batteries and extends their life. It has a balance charge mode for periodic battery bank maintenance. There are 4 Gigabit 802.3at or 24/48V Passive PoE and 3 Gigabit 24/48V Passive PoE ports. Each port is capable of 0.645A Max. There is a wire terminal auxiliary output capable of 2.25A maximum. Total from all outputs is set at 150W at 48VDC and 72W at 24VDC for a max total of 222W. Outputs can be switched by user between 802.3at (port 1-4 only), 48VDC, 24VDC or OFF through the web interface. The web interface has full capabilities to measure and log battery voltage, battery current, input voltage/current, load current and battery temperature. Ports can be controlled by a settable ping watchdog to power cycle the port if communications to the unit are interrupted. Auxiliary port can be controlled by voltage or temperature or time so it can be programmed to control lights, pumps, generators, heaters, fans, etc. The unit supports automated Email alerts if user programmed limits are exceeded so that the user can be alerted in case of developing problems at the site. The controller can also be powered through an external AC to DC power supply connected to the PV+/PV- input to charge the batteries from an AC source like grid power or generator. All inputs and outputs are surge and overload protected. Connectors and battery fuse are removable for easy maintenance. The controller can be mounted using the integral DIN rail mount bracket or using 2 mounting tabs. Technical Links
Spec Sheet https://www.tyconsystems.com/specsheets/TPDIN-SC48-20_Solar_Ctrl_Monitor_Switch_Spec_Sheet.pdf User Guide https://www.tyconsystems.com/usermanuals/8000042_TPDIN-SC48-20__quick_install_guide.pdf SC48-20 Demo https://tycondemo.dyndns.org:8005/ Firmware https://www.tyconsystems.com/tpdin-sc48-20-v3-firmware Tycon iOS App https://apps.apple.com/us/app/tycon-systems/id6670769114 Tycon Android App https://play.google.com/store/apps/details?id=com.tyconsystems.tycon KnowledgeBase
https://tyconsystemsinc.zohodesk.com/portal/en/kb/tpdin
